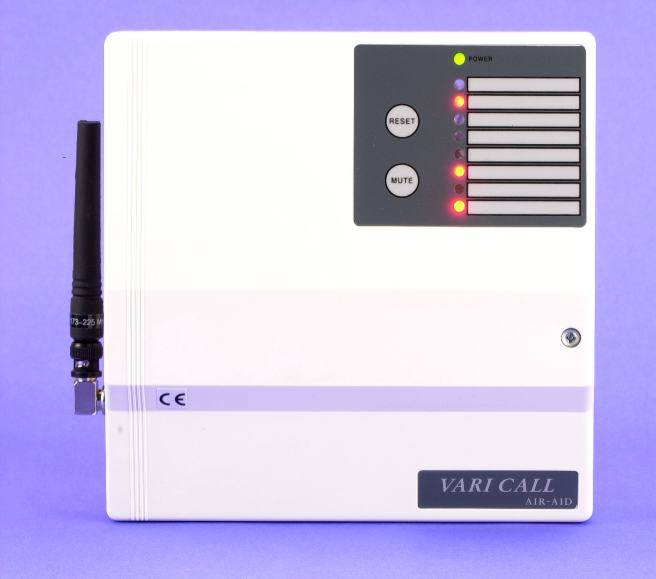

Varicall Radio Panel

1-8 zone radio receiver is ideal for small nursing homes, hospitals, police cell-call systems, public building security, lone worker systems or staff call systems. Disabled toilet alarm. Doctor / patient call. Exit door security



FEATURES

1 to 8 zone receiver.

Varicall shows a low battery from a call point by flashing the zone LED.

Permanently lit LEDís indicates calls.

No external power supply needed.

Call point units can also be triggered by any normally open contacts.

Aux 13Vdc 500mA fused and polarity protected output.

Internal sounder work in conjunction with latching relay.

Mute turns off sounder and latching relay for 4 minutes.

All LED indicators are tested when reset is pressed.

1 green LED power indicator.

1 Ė 8 red LED zone indicators.

12v 2.1Ah lead acid battery recharging capability.

Zone may be reset from call point or Varicall.

 8 different master codes enabling 8 Varicall to be placed next to each other.

Call point zone and master codes are set by a on board DIL switch.

1 latching relay energised when zone triggered for external sounders or strobes.

1 momentary relay energised for two seconds when zone triggered, for use with paging system.

New calls over ride the mute and re-energises momentary relay.



SPECIFICATION

Mains voltage  240v AC 50/60 Hz            Current             Min 60mA,  Max 200mA

Battery              12V 2.1AH lead acid         Battery life        Max 30hrs            Min10hrs



Power indicator   5mm green LED          Zone indicators     5mm red LED



Auxiliary outputs Power 13V DC 500mA 2 X Relays 1A @ 24V DC 0.5A @ 125V AC SPCO



RADIO SPECIFICATION

Frequency                     173.225MHz

DTI Specification          MPT 1344

Deviation                       typ 2.5KHz

Output power                10mW



DIMENSIONS              H 214mm L 225mm W 63mm
