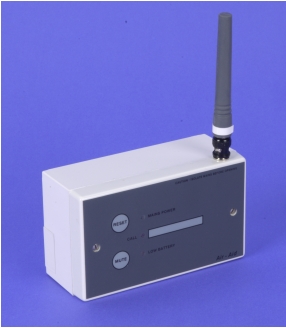

1 Zone Unicall Radio Panel

1 zone radio receiver is ideal for remote switching, Disabled toilet alarms, public building security, lone worker systems or staff call systems. Doctor / patient call. Exit door security

FEATURES

Removable front cover for easy installation.

Shows a low battery from the call point by lighting the low battery LED.

Permanently lit red LEDís indicates calls.

No external power supply needed.

Call point units can also be triggered by any normally open contacts.

Internal sounder works in conjunction with latching relay.

Mute switch turns off sounder and latching relay for 4 minutes.

All LED indicators are tested when the reset switch is pressed.

1 green LED power indicator.

1 red LED, call indicators.

1 yellow LED low battery indicator.

6V internal PCB battery gives 12 hours back up.

Call may be reset from call point or Lone worker.

32 different master codes enabling 32 Lone workerís to be placed next to each other.

An on board DIL switch sets call point master codes.

1 relay, energised when zone triggered for external sounders, pagers or strobes.

 Relay can be set using a jumper link to latch or momentary energise.

Internal LED lights if there is a coding fault.



SPECIFICATION

Mains voltage  240v AC 50/60 Hz           Current         Min 12mA Max 25mA



Battery               6V 150mAH PCB            Battery Life Max 12hrs   Min 6hrs



All indicator      5mm low current LEDís



Auxiliary outputs 1 X relays 1A @ 24V DC   0.5A @ 125V AC SPCO



Jumper settings    Latched or momentary relay. Reset switch enable. Mute switch enable



RADIO SPECIFICATION

Frequency                     173.225MHz

DTI Specification          MPT 1344

Deviation                       typ 2.5KHz

Output power                10mW



DIMENSIONS              H 86mm L 145mm W 60mm
